Components 1 has gone through a enormous trade for 2026, with an all-new energy unit, chassis and aerodynamics growing an important upheaval for the groups and producers.
Sign up for us as we delve into all the best possible technical main points on show on the first pre-season check, in Bahrain.
A team-by-team technical deep dive into rear ends, flooring and lively aero
An summary of the McLaren MCL40’s rear finish, which displays they’re the use of a rather massive rear cooling outlet. Additionally observe the winglet fastened beside the rear crash construction, which is able to paintings the central phase of the diffuser extra successfully.
A rear shot of the Mercedes W17 displays off each the cooling choices that the workforce had been operating in Bahrain and the diffuser extensions beside the crash construction.
A take a look at the rear finish of the Alpine A526, which significantly has a small cooling outlet on the rear, supplemented upstream by way of louvre panels at the best of the sidepod and at the engine duvet’s haunches.
This view of the rear finish of the Racing Bulls VCARB03 displays the scale and form of the rear cooling outlet and the period of the louvres at the facet of the engine duvet. Additionally observe, they have got a small diffuser extension beside the rear crash construction.
A shot of the Purple Bull RB22’s rear finish, which displays off their cooling format, together with the shoulder vents and big rear cooling cannon. Additionally observe that Purple Bull have opted for a winglet association beside the crash construction.
Ferrari have each a diffuser extension beside the crash construction and a suite of winglets fastened above that.
The higher L-shaped component of the Alpine A526’s deflector array has vertical slots main down from the highest edge to assist with power distribution throughout its span.
The ground foot and deflector array at the Aston Martin AMR26, which includes a slatted association very similar to many others at the grid but in addition combines it with a sail-like trailing edge like we’ve observed at the McLaren, Cadillac and Williams.
Six vortex turbines had been added to the inboard vanguard of the vertical phase of the deflector array at the Ferrari SF-26, while the horizontal blades added between the ground strakes can be noticed from this perspective.
Racing Bulls deflector array is composed of a skyscraper component on the entrance of the meeting, an L-Formed component thereafter and two extra slats above.
An summary of the deflector array at the Purple Bull RB22, noting the upwardly swept brackets hired within the ahead portion of the higher two slats.
The sidepod configuration at the Audi R26 holds extra fascinating options than it first seems, with the decrease form of the sidepod changing the make-up of the ground’s edge underneath it too. Particularly this ends up in the 5 flooring strakes showing to protrude out additional than you’d be expecting too.
This attitude of the Alpine A526’s deflector array displays how the primary a part of each and every component is apparently angled, while the rest of the outside is angled inwards.
A unique point of view of the deflector array at the Racing Bulls VCARB03 which displays the more than a few angles being hired to satisfy the necessities of the laws and carry out as they need.
The tyre spat area forward of the rear tyre at the Alpine A526, has an enchanting choice of slots and a dog-ear winglet to assist take care of one of the vital problems related to the phenomenon referred to as tyre squirt.
An in depth up of the tyre spat area at the Haas VF-25, with two horizontal slots added into the ground’s floor, supplemented by way of their geometry and a canine ear-style winglet fastened at the rear deck, while the trailing edge has additionally been lifted.
The tyre spat area at the Aston Martin AMR26 sees a number of answers blended to assist struggle the tyre squirt phenomenon, together with 3 L-shaped raised slots, two flat letterbox slots and a sq. nozzle trailing edge configuration.
The tyre spat area at the Cadillac includes a vertical strake housing two L-shaped and raised slots and a slat-like winglet towards the trailing fringe of the ground.
Williams have a rather easy 3 slot and flap association within the tyre spat area of the FW48.
The tyre spat area at the Purple Bull RB22 has 3 raised diagonal slots and an upturned trailing edge, which additionally includes a deep swage line to assist pressure the airflow right into a extra particular location. Additionally observe the mouse hollow, which is minimize into the sidewall of the diffuser and over the roof phase too.
The Audi R26’s entrance wing with flo-viz painted on more than a few surfaces because the workforce seems to be to get visible affirmation that the airflow is appearing as their digital equipment had predicted.
Ferrari doused the SF-26’s flooring in flo-viz paint at the 3rd day of trying out as they seemed to get visible affirmation that it’s appearing as their CFD equipment and wind tunnel had instructed.
The ground and deflector array at the Williams FW48 doused with flo-viz
The slotted bib design at the Audi R26 is apparently made up of 2 sections, the higher of which sits above the decrease one to create the slots and jagged losing edges.
Two vanes flank the bib keep bodywork at the Alpine A526, because the workforce glance to reinforce drift round that area.
The bib at the McLaren MCL40 includes a stepped association, fairly than a immediately edge, so as to have a distinct affect at the airflow.

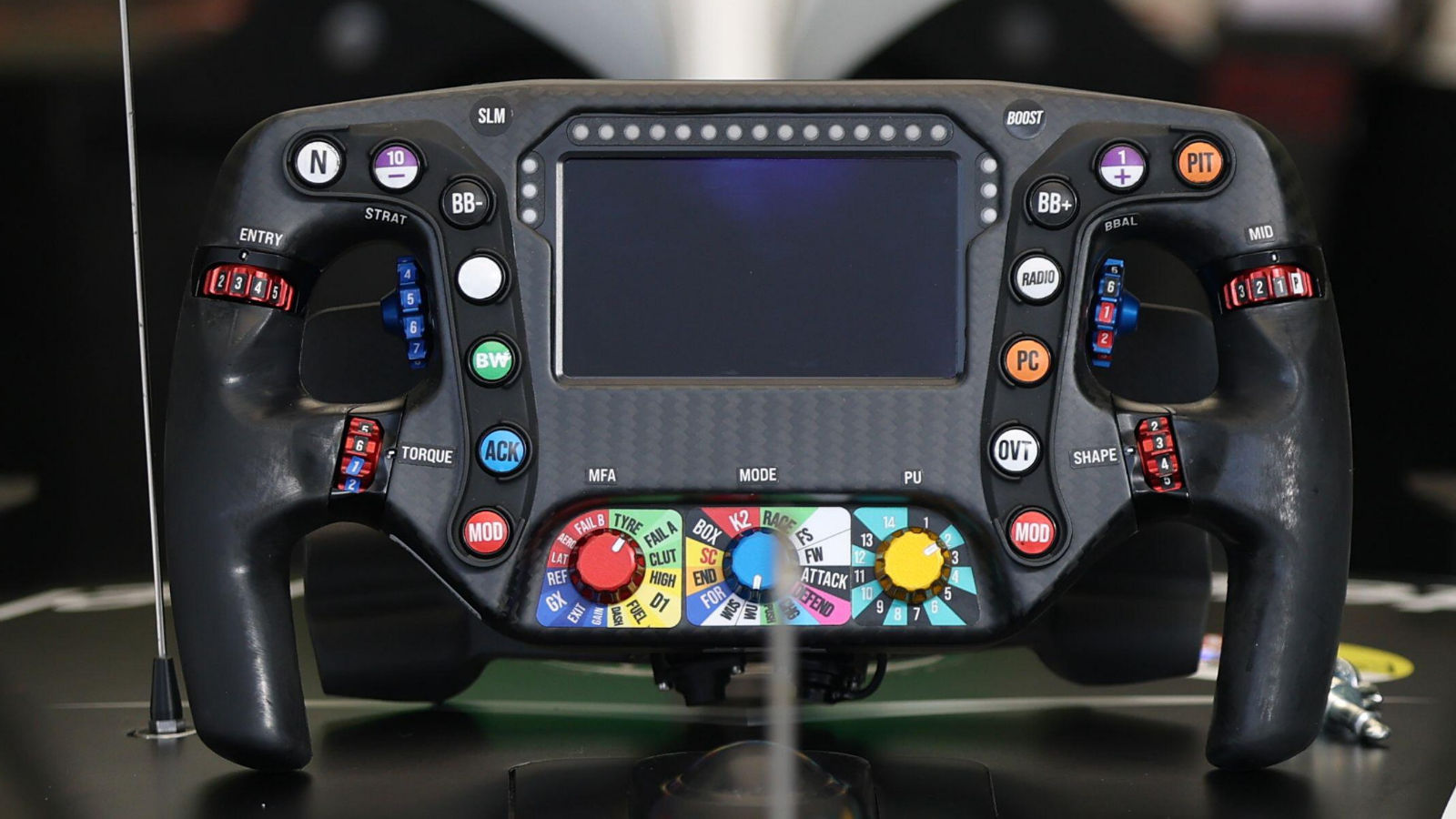

A take a look at the entrance of the Cadillac steerage wheel, with the more than a few button and rotaries liable for controlling the more than a few purposes of the chassis and gear unit

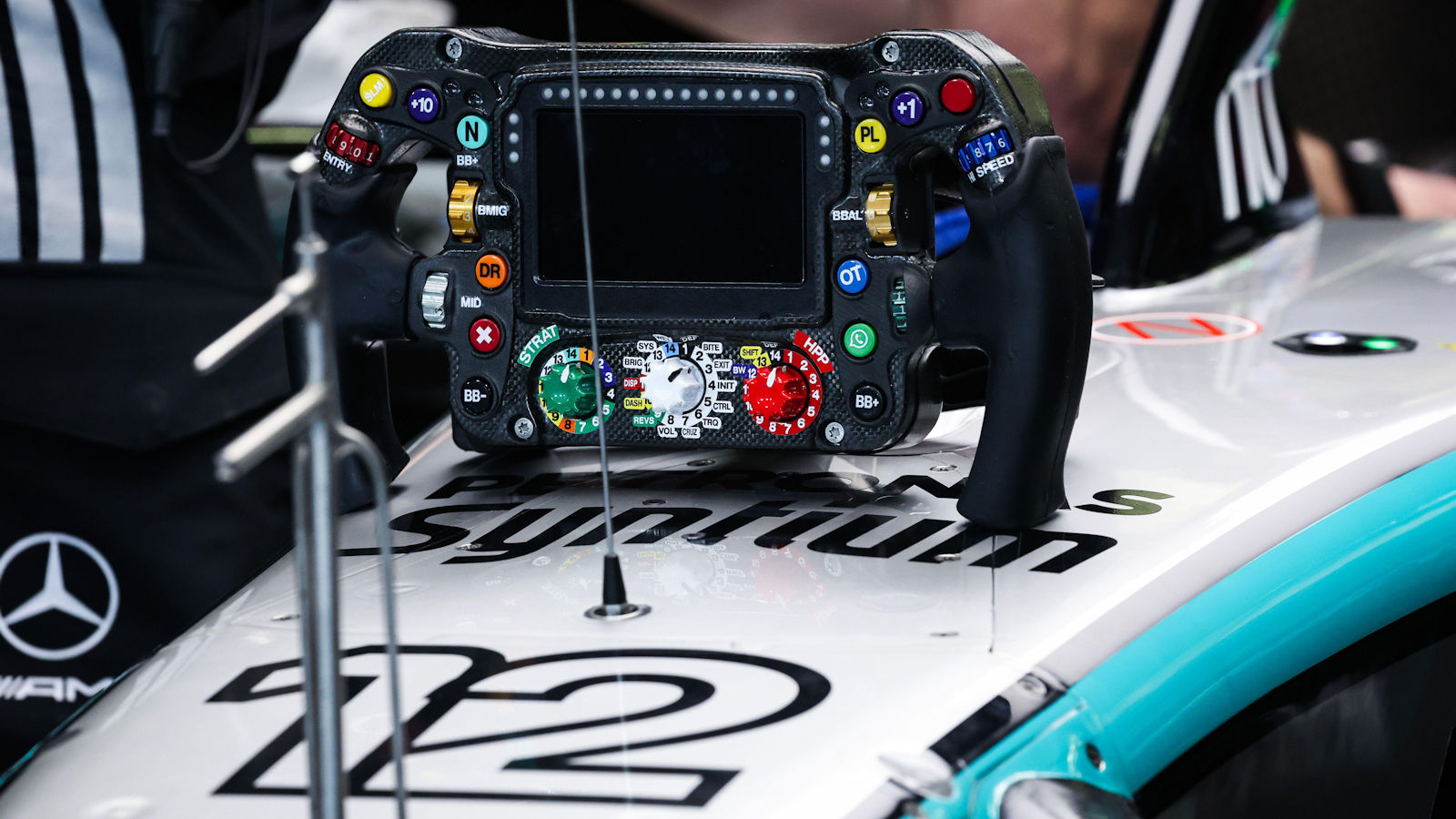

The format at the Mercedes W17’s steerage wheel hasn’t modified dramatically compared with ultimate 12 months’s automobile however as you’ll be able to see, there’s nonetheless a myriad of buttons and rotaries that the driving force wishes to know to make adjustments to the chassis and gear unit purposes.

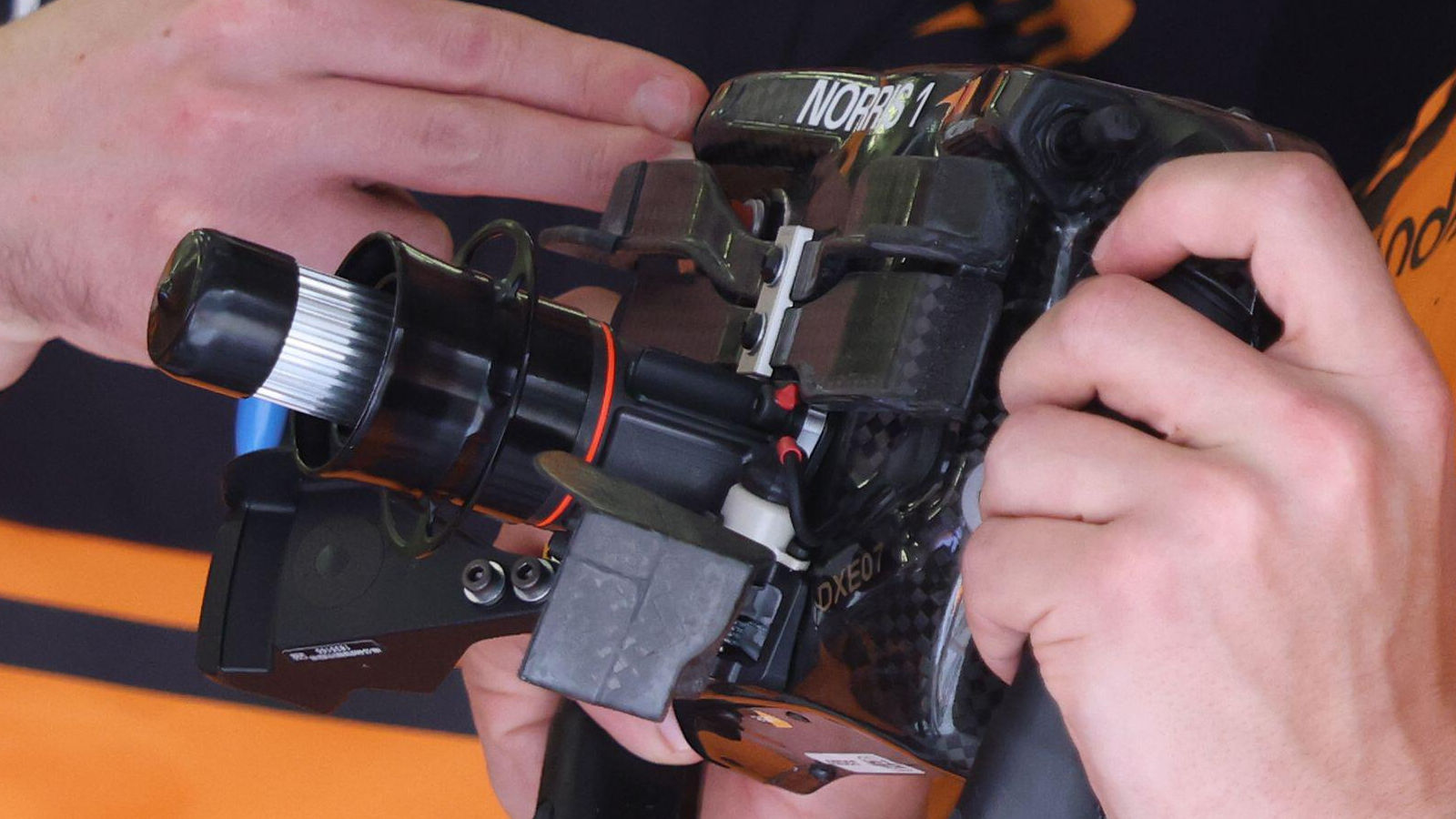

An in depth up of the rear of the McLaren steerage wheel, appearing off the more than a few paddles, together with those for seize operation and tool transferring.
We’re ready to look the interior make-up of the rear brake duct meeting at the Racing Bulls VCARB03, with out the outer drum mounted in position.
4 small vortex turbines had been added to each and every facet of the Williams FW48’s bib keep bodywork.
A peek underneath the covers of the Purple Bull RB22 unearths they’re the use of an air-to-air cooler association on their energy unit, which is fastened within the saddle place above the facility unit.
A peek on the McLaren MCL40’s rear wing endplate unearths they’ve retained a an identical upwashing swage line answer that the vehicles predecessor had.

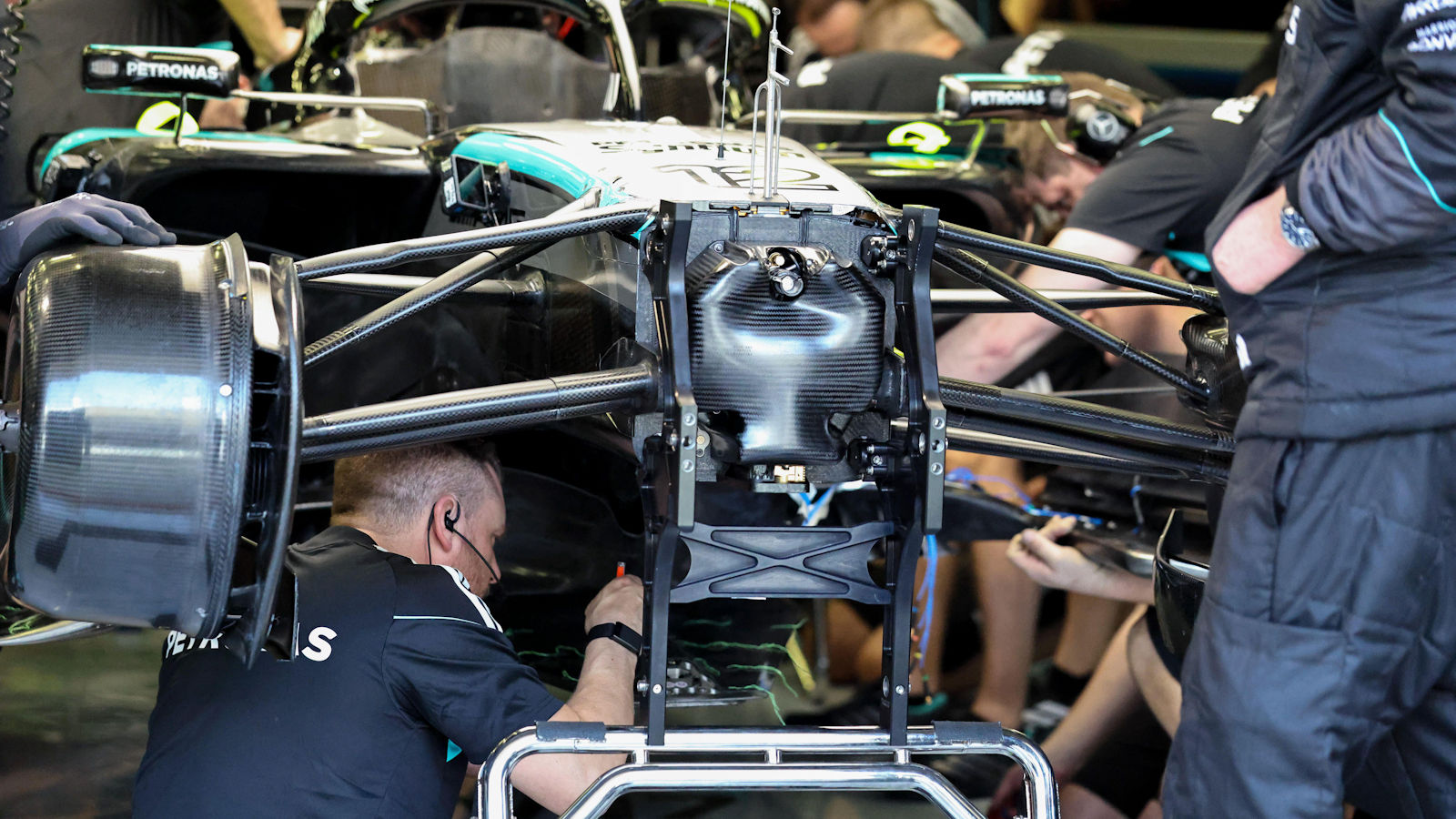

The Mercedes W17 at the stands within the storage being ready for motion. Word the low tech string answer at the vehicles bib, which the workforce may have monitored by way of a high-speed digicam.
A low-down shot of the Racing Bulls VCARB03 items us with a view of the ground’s vanguard and the strakes fastened upon it.
Williams have two small winglets on all sides of the FW48’s airbox to assist tidy up one of the vital drift in that area, while there’s every other winglet fastened beside the path arm of the halo too.

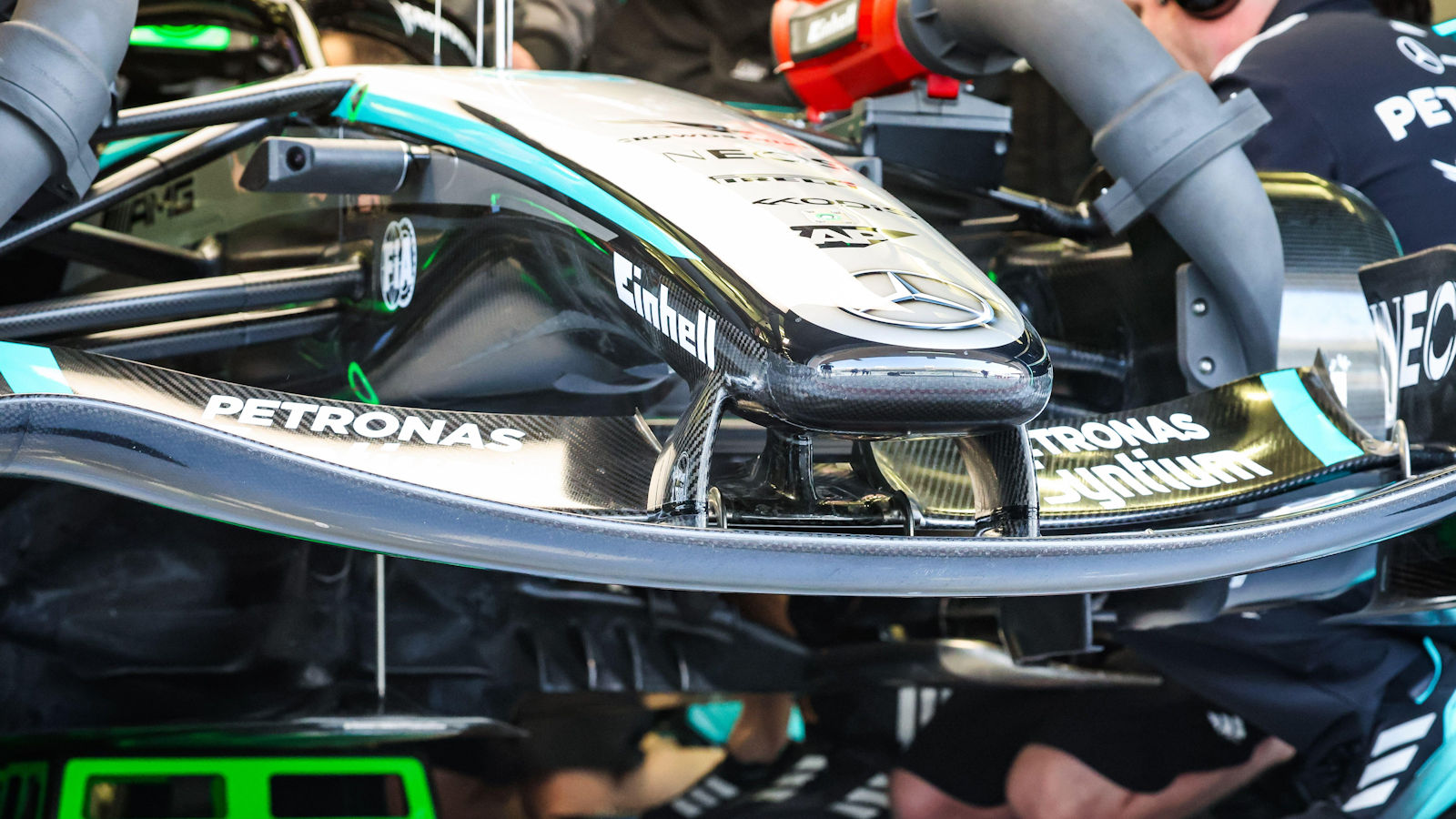

An excellent shot of the nostril and entrance wing unearths the centreline pod that properties the actuator for the lively aero. The centre phase of the higher flap that it’s fastened on doesn’t transfer when Mercedes deploys lively aero both, best the outer sections of the flap are in movement.

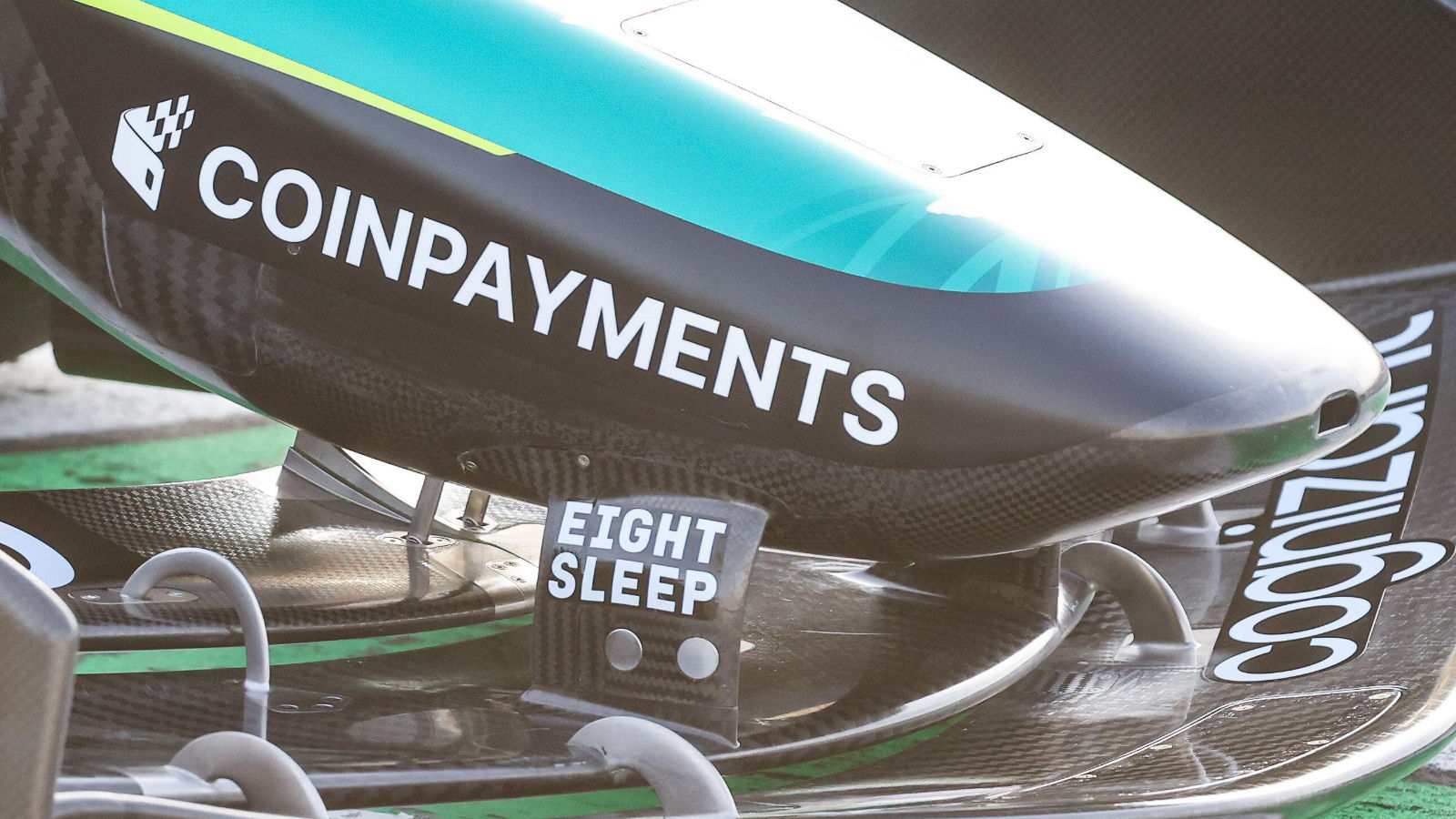

An in depth up of the nostril and entrance wing at the Aston Martin, with the lively aero actuated by way of the steel rods that may be observed hooked up to the centre of the higher flap.
